ISUZU ELF NLR
Isuzu ELF NLR Light Truk 4 ban isuzu euro 4 dengan EGR dan DOC mesin baru bertenaga besar 120PS Common Rail , terbagi 2 type : standar dan type Long Chassis serta Transmisi baru 6 percepatan.
ELF NLR

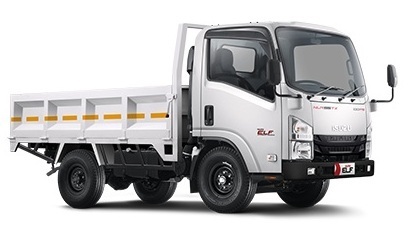

ELF NLR – Variant standart dari type NLR truk ringan 4 ban atau CDE panjang Chassis 4.700mm dan CE 3.217mm , mesin 2.999 CC , tenaga mesin 120 PS, Torsi 36 kg.m/ 1.500 Rpm, GVW 5.100 kg. Aplikasi Bak, Box, Losbak, Wing Box, dsb.
ELF NLR L
ELF NLR L – Variant Long chassis 4 ban atau CDE Long panjang Chassis 6.000mm dan CE 4.427mm , mesin 2.999 CC , tenaga mesin 120 PS, Torsi 36 kg.m/ 1.500 Rpm, GVW 5.100 kg. Aplikasi Bak, Box, Losbak, Wing Box, dsb.
Isuzu ELF NLR euro 4 lebih effisien dari pada seri sebelumnya Euro 2, dan konsumsi bbm lebih irit 20% dibandingkan mesin isuzu ELF euro 2.
Isuzu ELF NLR aplikasi bisa digunakan sebagai bak 3 way besi, Box besi, box alumunium. box freezer, Crane truk mini, Mobil angkut galon air, mobil layanan, dan lain sebagainya sesuai SK yang berlaku.
Spesifikasi dan Dimensi Isuzu ELF NLR
Dimensi
| Panjang / Overall Length [OAL] | 4,700 | mm |
| Lebar / Overall Width [OW] | 1,835 | mm |
| Tinggi / Overall Height [OH] | 2,205 | mm |
| Jarak Sumbu / Wheelbase [WB] | 2,490 | mm |
| Julur Depan / Front Overhang [FOH] | 1,110 | mm |
| Julur Belakang / Rear Overhang [ROH] | 1,100 | mm |
| Jarak Terendah ke Tanah / Minimum Clearance [HH] | 220 | mm |
| Jejak Depan / Front Tread [AW] | 1,475 | mm |
| Jejak Belakang / Rear Tread [CW | 1,395 | mm |
| Cabin to End [CE] | 3,127 | mm |
Mesin
| Model | 4JJ1-TCC | |
| Tipe / Type | Direct Injection, Commonrail, DOHC, 4 Cylinder with VGS Turbo Intercooler | |
| Sistem Kontrol Emisi | EURO4 with EGR & DOC | |
| Diameter x Langkah / Bore x Stroke | 95.4 X 104.9 | mm |
| Isi Silinder / PistonDisplacement | 2,999 | CC |
| Tenaga Maksimum / Maximum Power | 120 / 2,600 | PS/Rpm |
| Torsi Maksimum /Maximum Torque | 36 / 1,500 – 2,600 | Kg.M/rpm |
Transmisi
| Mode | MYY6S | |
| PerbandinganGigi / Gear Ratio | 1ST | 5.979 |
| 2ND | 3.434 | |
| 3RD | 1.862 | |
| 4TH | 1.297 | |
| 5th | 1.000 | |
| 6th | 0.759 | |
| REV | 5.701 | |
| PerbandinganGigi Terakhir / Final Gear Ratio | 4.300 |
Berat Kendaraan
| Berat Kosong Kendaraan / Curb Weight | 1,864 | Kg |
| BeratTotal Kendaraan /Gross VehicleWeight [GVW] | 5,100 | Kg |
| Kapasitas Gardan Depan / Capacity Front Axle | 2,330 | Kg |
| Kapasitas Gardan Belakang / Capacity Rear Axle | 2,770 | Kg |
SIstem REM
| Tipe/Type | Hydraulic |
| Rem Kaki / Service Brake | Hydraulic saluran ganda dengan vacum booster |
| Rem Tangan / Hand Brake | Expanding pada transmisi belakang |
| Sistem Pengereman Gas Buang / Exhaust Brake | Exhaust brake, tuas berada di stir |
Roda
| Ukuran Ban | 7.50-15-12PR |
| Ukuran Velg | 15 X 5.50 |
Sistem Suspensi
| Depan / Front | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
| Belakang / Rear | Semi eliptical laminated leaf spring dengan shock absorber berdaya ganda |
Kelistrikan dan lain lain
| Kapasitas Tangki / Fuel Tank Capacity | 75 | Liter |
| Radius Putar Minimum / Minimum Turning Radius | 5.7 | Meter |
| Daya Tanjak Maksimum / Maximum Gradeability | 44 | % |
| Kecepatan Maksimum / Maximum Speed | 120 | Km/Hour |
| Aki / Accu | 2 X 12 V – 60 Ah | V-AH |
| Alternator | 24 – 50 | V-A |
| Kamera Mundur / Reverse Parking Camera | ADA | |
| Audio Head Unit | ADA | |
| USB Charging System | ADA | |
| APAR (Alat Pemadam Api Ringan) | ADA | |
| Fan Blower | ADA | |
| Garansi / Warranty | 3 Tahun / 100,000 km |
